The Macrochip 400G QSFP-DD optical transceiver is designed for data centers and core network applications. It supports PAM4 modulation and delivers up to 400Gbps transmission speed. This module features high density, low power consumption, and strong compatibility. It complies with QSFP-DD MSA, IEEE 802.3bs, and 802.3cd standards, supporting multiple transmission types such as SR8, DR4, and FR4. It is ideal for short-reach, inter-building, and backbone deployments.

Core Advantages

High-Speed Performance: 8×50Gbps electrical lanes with aggregated 400Gbps optical output
Flexible Reach Options: SR8 (100m), DR4 (500m), FR4 (2km) to support various applications
Low Power Consumption: Typical power ≤12W, suitable for high-density environments
Wide Compatibility: Works with mainstream switches and routers; supports CMIS 4.0
Certified Quality: CE, RoHS, FCC, and full compliance with international standards

Optical Module 400G
Model No.	Product	Data Rate	Distance	Connector	Temperature

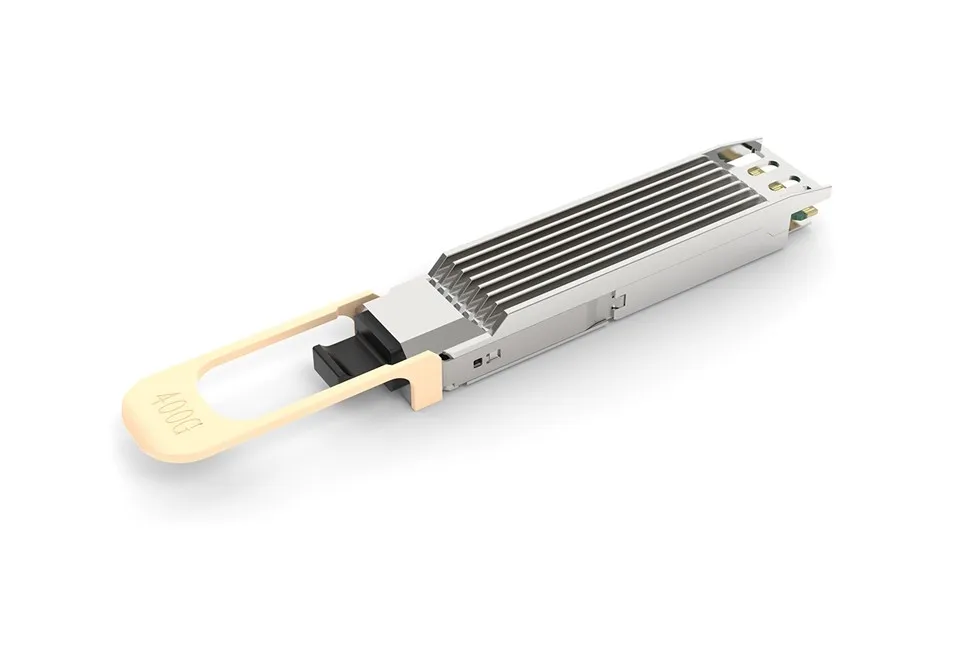

MCO-6PV38C-1H	400G OSFP SR4	4×106.25 Gbps	100m	MPO-12	0~70 ºC
MCO-5PV48C-1H	400G OSFP SR8	8×53.125 Gbps	70/100 m	MPO-16	0~70 ºC
MCR-5PV48C-1H	400G QSFP-DD SR8	8×53.125 Gbps	70/100 m	MPO-16	0~70 ºC
MCQ-6PV38C-1H	400G QSFP112 SR4	4×106.25 Gbps	100 m	MPO-12	0~70 ºC
MCO-6PS3CC-5H	400G OSFP DR4	4×106.25 Gbps	500 m	MPO-12	0~70 ºC
MCO-6PS3CC-2K	400G OSFP DR4+	4×106.25 Gbps	2 km	MPO-12	0~70 ºC
MCR-6PS3CC-5H	400G QSFP-DD DR4	4×106.25 Gbps	500 m	MPO-12	0~70 ºC
MCR-6PS3CC-2K	400G QSFP-DD DR4+	4×106.25 Gbps	2 km	MPO-12	0~70 ºC
MCQ-6PS3CC-5H	400G QSFP112 DR4	4×106.25 Gbps	500 m	MPO-12	0~70 ºC
MCO-5PSDCC-2K	2×200G OSFP FR4	8×53.125 Gbps	2 km	Dual LC	0~70 ºC
MCO-6PSCCC-2K	400G OSFP FR4	4×106.25 Gbps	2 km	LC	0~70 ºC
MCR-6PSCCC-2K	400G QSFP-DD FR4	4×106.25 Gbps	2 km	LC	0~70 ºC
MCQ-6PSCCC-2K	400G QSFP112 FR4	4×106.25 Gbps	2 km	LC	0~70 ºC
MCR-6PSCLC-10	400G QSFP-DD LR4	4×106.25 Gbps	10 km	LC	0~70 ºC

Customization Options

Customizable Item	Options
Form Factor	QSFP-DD / OSFP
Transmission Distance	100m / 500m / 2km / 10km
Optical Variant	SR8 / DR4 / FR4 / LR4
Temperature Range	0–70°C (Commercial) / -40–85°C (Industrial)
Connector Type	MPO-12 / MPO-16 / LC Duplex
Laser Type	VCSEL / EML / DFB (based on variant)
Label & Branding	Custom logo, SN format, product model engraving
Protocol Management	CMIS 4.0 / Custom options
Packaging	Tray / Boxed / ESD-safe bag
Certifications	UL, TUV, or region-specific compliance (upon request)

FAQ

Q: Do you have a 400G optical module that supports 10km transmission?

A: Yes, our 400G QSFP-DD LR4 module is specifically designed for 10km long-distance transmission.

Q: What laser brands are used in your optical modules?

A: We use globally trusted brands like Broadcom, Coherent, MACOM, and nLIGHT, ensuring high reliability and scenario-specific performance (e.g., short-reach data centers/long-haul telecom). All products comply with international certifications.

Q: Can you accommodate special customization requests?

A: Yes, we provide tailored solutions based on your needs, including design adjustments, compatibility optimization, and performance enhancements. Contact us to discuss your project specifics.

About Us

Established in 2018, Macrochip Technology Co., Ltd is a high-tech corporation dedicated to R&D and manufacturing of silicon photonics chips and optical transceivers for data center and 5G Network. With the headquarter in Quanzhou, Fujian Province, Macrochip also set up branch offices in Beijing Zhongguan Village and Wuhan Optical Valley.

● Quanzhou: Headquarter, Operation, R&D, Production, Sales

● Beijing: SiPh Chip Center, Sales

● Wuhan: Transceiver Center, Sales

Taking the core advantages of self-developed silicon photonics chips as well as other technologies, Macrochip has a comprehensive portfolio for singlemode and multimode optical transceivers covering 25G/100G/200G/400G/800G, which offers solutions for both telecom and datacom.

Patent Support

Macrochip possesses many insightful patents, such as high alignment efficiency silicon photonics platform and ultra-high speed and low loss photonics integration platform. These patents not only safeguard our intellectual property but also provide our clients with the assurance of using cutting-edge, legally protected solutions.
