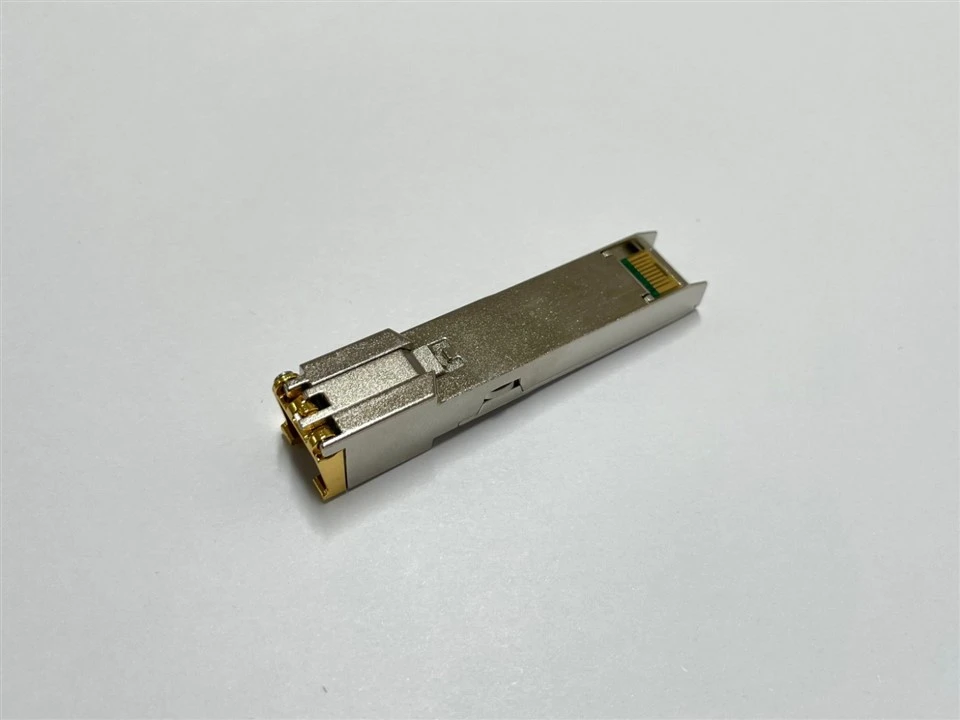

1.25G SFP RJ45 100m
Products Description
MOC-S31C-10 10/100/1000BASE-T copper SFP transceiver is high performance, cost effective module compliant with the Gigabit Ethernet and 10/100/1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supporting 10/100/1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The MOC-S31C-10 supports 10/100/1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modula-tion (PAM) signals.All four pairs in the cable are used with symbol rate at 250Mbps on each pair.The MOC-S31C-10 provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2-wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2-wire serial bus at address ACh.
Features
- Hot-pluggable SFP footprint
- Fully metallic enclosure for low EMI
- Low power dissipation
- Compact RJ-45 connector assembly
- Detailed product information in EEPROM
- +3.3V single power supply
- Access to physical layer IC via 2-wire serial bus
- 10/100/1000 BASE-T operation in host systems with SGMII interface
- Compliant with SFP MSA
- Compliant with IEEE Std 802.3TM-2002
- RoHS Compliant
- Case temperature range (0°C to +70°C )
Applications
- 1.25 Gigabit Ethernet over Cat 5 cable
- Switch/Router to Switch/Router Link
- High speed I/O for file severs
FAQ
Q: Will it work with my specific switch or router?
A: It is designed to be broadly compatible with most major brands that have a standard SFP slot. However, for guaranteed compatibility, we always recommend consulting with us before purchase.
Q: Is it complicated to install and configure?
A: Not at all. It's hot-pluggable, meaning you can insert it into your device's SFP slot while it's running. For most devices, it will be automatically recognized as a standard 1.25G/1G Ethernet port without any special configuration.
