1.25G SFP BIDI 20km

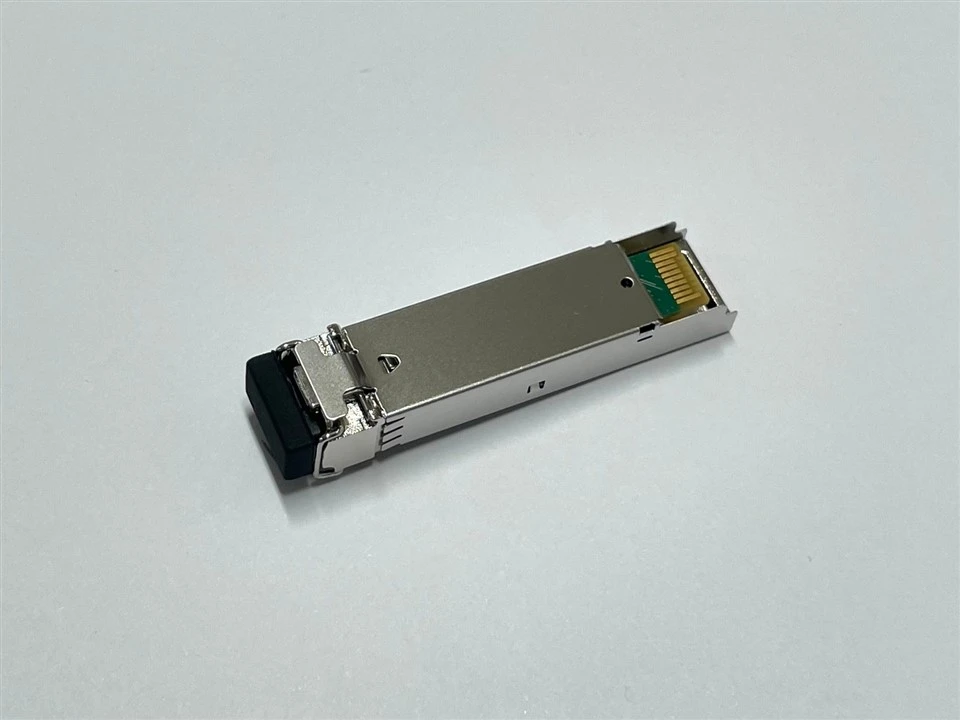

1.25G SFP BIDI 20km 1550T/1310R
Products Description
Macrochip MCS-BNDBCC-20-53 Bi-Directional transceiver is a high performance, cost effective module, which is compliant with LC Optics interface with built in WDM for Bi-Directional serial optical data communication applications. This module is designed for Single-Mode single fiber, operates at the normal wavelength of 1550/1310nm.The transmitter section incorporates DFB and driver IC with temperature compensation and automatic power control circuit, which makes the transmitter section output power and Extinction ration stabled in operation temperature. The receiver section incorporates an efficient InGaAs photodiode and transimpedance with AGC for wide dynamic range.
Features
- Up to 1.25Gb/s Data Links
- Hot-Pluggable SFP footprint
- Single LC for Bi-directional Transmission
- Built-in 1550nm DFB Laser
- 1310nm PIN photo-detector
- Built-in digital diagnostic functions
- Up to 20Km on 9/125μm SMF
- Single +3.3V Power Supply
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- Very low EMI and excellent ESD protection
- RoHS compliant and Lead Free
Applications
- 1000Base-LX Ethernet
- Metro/Access Networks
- 1×Fibre Channel
- Other Optical Link
1.25G SFP BIDI 20km 1310T/1550R
Products Description
Macrochip MCS-BNDBCC-20-35 Bi-Directional transceiver is a high performance, cost effective module, which is compliant with LC Optics interface with built in WDM for Bi-Directional serial optical data communication applications. This module is designed for Single-Mode single fiber, operates at the normal wavelength of 1310/1550nm.The transmitter section incorporates FP and driver IC with temperature compensation and automatic power control circuit, which makes the transmitter section output power and Extinction ration stabled in operation temperature. The receiver section incorporates an efficient InGaAs photodiode and transimpedance with AGC for wide dynamic range.
Features
- Up to 1.25Gb/s Data Links
- Hot-Pluggable SFP footprint
- Single LC for Bi-directional Transmission
- Built-in 1310nm FP Laser
- 1550nm PIN photo-detector
- Built-in digital diagnostic functions
- Up to 20Km on 9/125μm SMF
- Single +3.3V Power Supply
- Industrial /Extended/ Commercial operating temperature range: -40°C to 85°C/-5°C to 85°C/-0°C to 70°C Version available
- Very low EMI and excellent ESD protection
- RoHS compliant and Lead Free
Applications
- 1000Base-LX Ethernet
- Metro/Access Networks
- 1×Fibre Channel
- Other Optical Link
FAQ
Q: What makes this a BIDI module, and what's its main advantage?
A: BIDI stands for Bi-Directional. Unlike a standard two-fiber module, this single-fiber module uses two different wavelengths (1550nm to transmit, 1310nm to receive) to send and receive data over a single strand of fiber. Its key advantage is saving 50% of your fiber infrastructure, effectively doubling your fiber capacity.
Q: What is the most important thing to know when purchasing and deploying it?
A: It must be used in matched pairs. You need two modules: one of this model (1550T/1310R) and its counterpart, which must be the reverse model (1310T/1550R). Connecting two identical modules will not work, as they would be trying to transmit on the same wavelength.
Q: What makes this a BIDI module, and what's its main advantage?
A: BIDI stands for Bi-Directional. Unlike a standard two-fiber module, this single-fiber module uses two different wavelengths (1550nm to transmit, 1310nm to receive) to send and receive data over a single strand of fiber. Its key advantage is saving 50% of your fiber infrastructure, effectively doubling your fiber capacity.
Q: What is the most important thing to know when purchasing and deploying it?
A: It must be used in matched pairs. You need two modules: one of this model (1550T/1310R) and its counterpart, which must be the reverse model (1310T/1550R). Connecting two identical modules will not work, as they would be trying to transmit on the same wavelength.
