DR8 Optical Transceiver
General Description

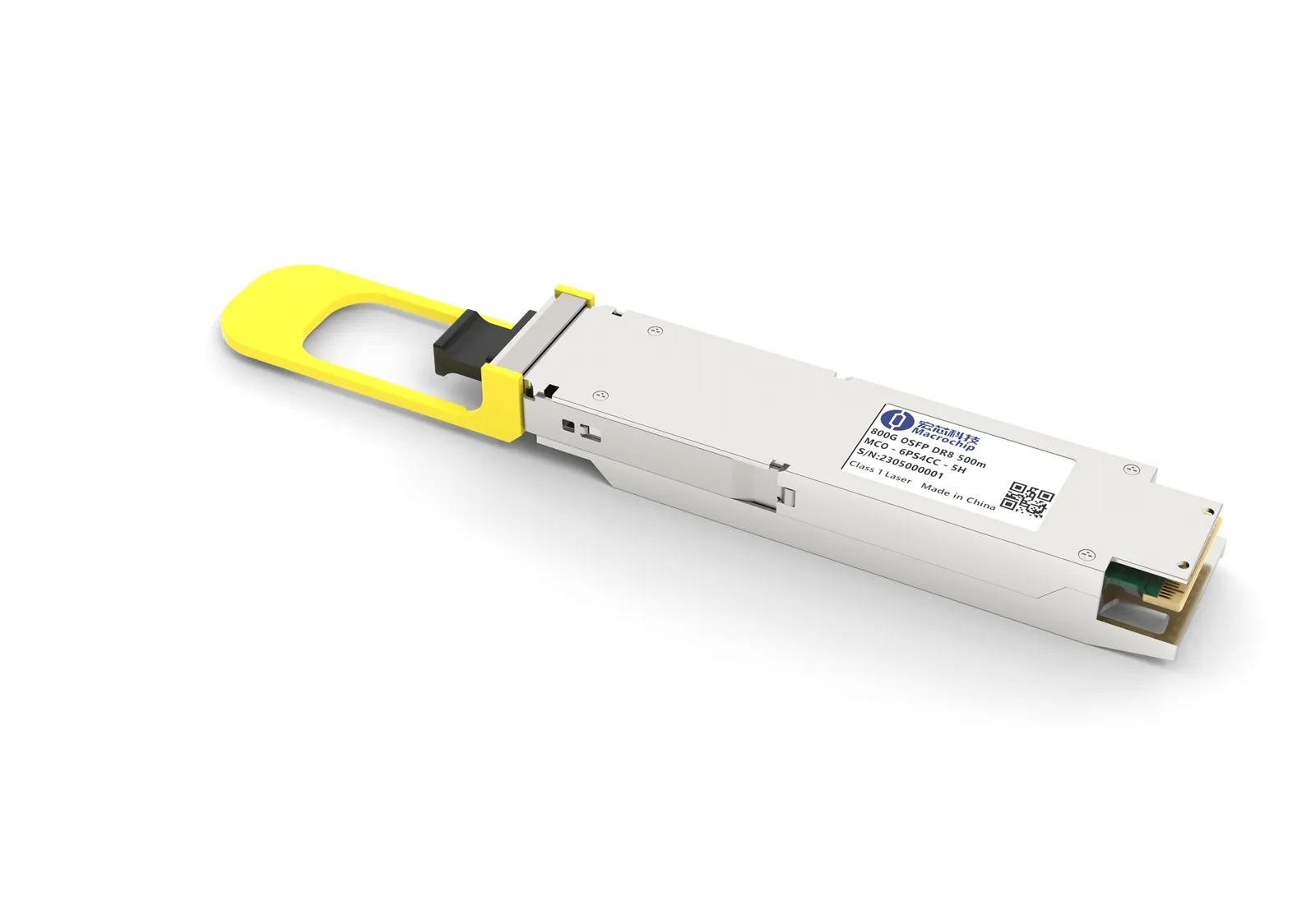

MCO-6PS4CC-5H is a transceiver with OSFP800 form factor that supports 800GBASE-DR8 / 2 x 400GBASE-DR4 / 8 x 100GBASE-DR optical interfaces complied with Ethernet Protocol. The host electrical interface has 8 lanes operating with PAM4 signaling at 53.125 GBaud allowing for the operation of 800 GbE / 2 x 400 GbE / 8 x 100GbE interfaces up to 500 m over parallel single mode fiber media (PSM) with 2 x MPO- 12 connectors.
Features
- Data rate up to 850Gbps (8x PAM4 53.125 GBd)
- Application Mode:
Optical Interface:
800GBASE-DR8, 2x 400GBASE-DR4,
8x 100GBASE-DR
Electrical Interface*:
800GbE Aggregation Mode, 2x 400GbE
Aggregation Mode, 8x 100GbE Breakout Mode
- Form factor: OSFP800 MSA
- Optical connector: 2x MPO- 12
- Power consumption: <14 W
- Operating case temperature: 0 to 70 ºC
- Management IF: CMIS 5.1
Applications
- Data center switch/router interconnects
Functional Description
MCO-6PS4CC-5H is 800G optical transceiver compliant to the OSFP800 form factor specification that supports 800GBASE-DR8 / 2 x 400GBASE-DR4 / 8 x 100GBASE-DR optical interfaces, each of these interfaces are based on 1310nm wavelength operating with PAM4 signaling at 53.125 GBaud (106.25 Gbps per lane) over parallel SMF cable. The optical interfaces support transmission up to 500 m of parallel single mode fiber media (PSM) with and may be accessed via 2 x MPO- 12 optical connectors. The management interface is compliant to CMIS 5.1. Figure 1 shows the functional block diagram.
Figure 1 Functional Block Diagram
FAQ
Q1: Do you attend trade shows where I can see this 800G DR8 optical transceiver?
A1: Yes. We exhibit at OFC (USA), ECOC (Europe), FOE (Japan), Data Centre Paris, Data Centre Madrid, and Smart Nation Expo in Malaysia. You can see live 800G demos at our booth. Check our website for dates and booth numbers.
Q2: How do I store unused DR8 optical transceiver?
A2: Keep them in the original anti‑static bag, inside a closed box away from moisture and direct sunlight. Ideal storage temperature is 0‑40°C. Always insert the dust plug into the MPO‑16 port. Do not stack heavy items on top. 800G modules have sensitive optical arrays – keep them clean and static‑protected.
